PTZ Optics SDI Models

Designed for flexible live streaming and video production environments. PTZOptics quality optical lenses and control capabilities provide endless possibilities for high definition broadcasting.

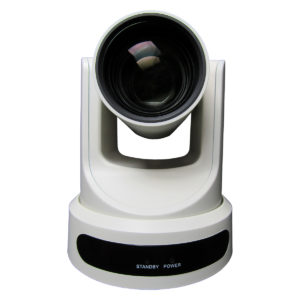

The PTZOptics SDI is a 1080p camera with 12X, 20X, or 30X optical zoom for capturing HD images at long distances. With support for 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for capturing high definition video signals for projecting, recording, or live streaming your worship services. The 3G-SDI models can be NDI™ upgraded or come native with NDI™ capabilities. For more information, see the NDI page.

Please note: The 30X is unable to perform simultaneous 1080p 60fps over SDI / HDMI & the IP Stream. When utilizing 1080p 60fps on either of the outputs, the other output must be set to a maximum of 1080p 30fps.

KEY FEATURES

• High performance in low light scenarios with Wide Dynamic Range.

• Full 1920x1080p HD Resolutions up to 60 frames per second.

• 2D and 3D noise reduction with our latest “low noise CMOS sensor”.

• RS232 & RS485 (Serial), and IP (LAN/WAN) control

• H.264, H.265, & MJPEG streaming over RJ-45 LAN port

• HDMI, 3G-SDI, & IP streaming (all 3 simultaneously)

• PoE (Power over Ethernet) or 12VDC

• RTMP & RTSP IP streaming



Download 12X SDI Data Sheet

Download 20X SDI Data Sheet

Download 30X SDI Data Sheet
