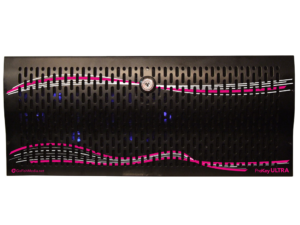

ProKey Ultra

The ProKey Ultra system is designed to project alpha channel text over live video in real time. Incorporate our worship presentation software seamlessly with live video into your worship service.

Fully digital 10-bit, 4:2:2 and 4:4:4 inputs, outputs, HD and SD video processing with video capture and streaming!

SSP Certified

  • Stream video to your free Facebook Live and YouTube Live accounts!
  • Record and stream live video in HD and SD!
  • Record up to 160 hours of HD video!
  • Record up to 1800 hours of SD video!
  • Supports digital audio inputs
  • Text over Live Video projection (IMAG)
  • Seamless integration with SongShow Plus Ultra
  • Built in Hardware Down Converter
  • IMAG Inputs include: (1) Composite, (1) S-Video, (1) Component, (1) HDMI, (1) SDI
  • Recording Inputs include: (2) HDMI
  • Video Outputs include: (1) Composite, (1) Component, (1) S-Video, (1) HDMI, (2) SDI
  • 1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.
  • Control Monitor and Stage Display Outputs Include: (1) HDMI, (1) DVI-D, (1) VGA. Triple Output Support.
  • Multi-Display Outputs Include: (1) DVI-D, (1) DVI-I, (1) HDMI, (1) DisplayPort. Quad Output Support.
  • Supports Mobile Control & Wireless Stage Display (Wireless router required)
  • Stream to multiple destinations simultaneously
  • Built-in lower third titles for streaming and recording
  • High Res ISO Recording and Replay
  • Dynamic Editor
  • Color Correction
  • Audio Effects
  • Advanced Audio Sync Delay
  • Audio Mixing
  • Video Sync
  • Stream Delay
  • Firewire HDV Option
  • Picture in Picture (PiP)
  • Auto-Save Recovery
  • 3D virtual sets for streaming and recording
  • Custom Recovery Partition (Includes Windows OS, Updates, Drivers and any purchased software)
  • Over 100 motion backgrounds, images and video countdown timers pre-installed.
  • Dial-in phone support
  • Front cover with key lock for better security.
  • **Compact, rack-mountable chassis
  • **Outside Chassis Dimensions: 22”(D) x 17”(W) x 7”(H)
  • 3 Year Warranty

** Using rack-mount handles, add 1 1/2” to depth

Please contact your Sales Representative for upgrade options and discounted pricing.
